Developing 4x5 sheet film at home: An overview of all methods

You've taken the plunge into large format — congratulations. But now you're facing a question every new 4x5 photographer asks: How do I develop these huge negatives at home?

Anyone coming from 35mm knows the drill: film into the spiral, spiral into the tank, chemicals in, done. With sheet film, things suddenly get more complicated. There are a surprising number of methods, from free to several hundred euros. Each has its justification — and its pitfalls.

This article gives you an honest overview of all common methods, so you can find the one that suits your budget, workflow and requirements.

Click here for the accompanying video: Develop 4x5 Sheet Film in Paterson Tank

1. Tray Development

Cost: 0–20 € (just trays + chemicals)

Capacity: 1–10+ sheets (depending on tray size)

Darkness: Completely dark during the entire process

The oldest and cheapest method. You place your sheet films in open photo trays and move them through developer, stop bath and fixer by hand.

Video: Tray processing sheet film

Advantages:

• Practically free if you already have trays
• Full control over each individual sheet
• Ideal for the Zone System (N+/N- development per sheet)
• Ansel Adams worked this way — proven for decades

Disadvantages:

• You stand in complete darkness
• for the entire process
• Blind handling of open chemical trays
• Real risk of scratches (film corners scratch neighboring sheets) plus high chemical consumption

Learning curve for "shuffling" (flipping through films without damaging them) For whom?

Photographers who need maximum control, use the Zone System, and have no problem with darkness. Or beginners who want to test the waters without investing first.

2. The "Taco Method" Cost:

5–10 € (rubber bands + existing tank) Capacity:

Up to 4 sheets in a standard tank Darkness:

Completely dark when loading

The budget hack: You roll the sheet film into a "U" (hence "Taco"), fix it with rubber bands and place it in a normal Paterson or Jobo tank. Video:

Developing sheet film taco method

• Advantages:
• Almost free

Uses existing equipment

• Disadvantages: Unreliable
• — rubber bands slip off, films stick together
• Uneven development due to limited chemical circulation
• The emulsion is on the inside and is poorly rinsed

Confusing orientation in the dark For whom?

Honestly: for no one in the long run. It's a stopgap, not a system. If you develop more than one test film, invest in a better solution.

3. HP Combi Plan T Cost:

45–90 € (used only, hard to find) Capacity:

6 sheets per frame Darkness:

Dark when loading the frame, then daylight

A classic from the 90s. The Combi Plan is a compact dip-and-dunk system with a film frame that is immersed in separate tanks for developer, stop bath and fixer. Image:

Secondhand Darkroom

• Advantages:
• Cheap entry (used often under 50 €)
• Clever clamps prevent slipping

Compact dip-and-dunk principle

• Disadvantages: No longer manufactured
• — you are dependent on the used market
• Tight lids can lead to uneven distribution when pouring
• Chemical circulation is not at the level of modern systems

Spare parts difficult to find For whom?

Bargain hunters who strike gold on eBay and are looking for a tested, proven system.

4. Yankee/Nikor Tanks Cost:

20–60 € (used) Capacity:

4 sheets (with divider) or 1× 8x10 Darkness:

Older American tank systems with swivel agitation. You can occasionally find them at flea markets or in online auctions.

Video: Large Format Film - 4x5 Film Processing Methods

Advantages:

• Very cheap used
• Multi-format (4x5 and 8x10)
• Simple principle

Disadvantages:

• Uneven results — many users report streaks and spots
• Outdated design
• No spare parts, no community

Who is it for? Collectors and hobbyists. There are better options for serious work.

5. MOD54

Cost: ~60 € (e.g. Fotoimpex 59,90 €, Macodirect 58,95 €)

+ Tank: Paterson Multi-Reel 3 PTP116 — ~30 € (Macodirect 29,95 €)

Total cost: ~90 €

Capacity: 6 sheets 4x5

Darkness: Dark when loading, then daylight (in the Paterson Tank)

Image: Macodirect

The MOD54 is the best-known insert for standard Paterson tanks. Developed by photographer Morgan O'Donovan under the brand MOD Photographic, it has established itself in the community as a reliable solution. The original manufacturer's website is no longer available, but the product is still available from specialist dealers such as Fotoimpex and Macodirect.

Advantages:

• 6 sheet capacity
• Large community, lots of testimonials
• Can be bought new immediately

Disadvantages:

• Needs the larger Paterson PTP116 (Multi-Reel 3) — not the standard PTP115!
• No integrated light trap
• Loading in the dark requires practice

Who is it for? Photographers who already own a Paterson Multi-Reel 3 Tank (PTP116) and want a proven injection-molded solution.

6. Stearman Press SP-445

Cost: 100 € (Fotoimpex), $96 USD directly from the manufacturer

+ Tank: incl. (stand-alone system)

Total cost: ~100 €

Capacity: 4 sheets 4x5

Darkness: Daylight loading (stand-alone tank)

Image: Stearman Press Shop

The SP-445 is a stand-alone tank system specifically designed for 4x5 sheet film. The special thing: You can load the film in daylight. Requires only 475 ml of chemicals per run.

Advantages:

• Daylight loading — no changing bag, no darkroom needed
• Excellent chemical circulation and even development
• Compact, self-contained and economical in chemical consumption (475 ml)
• Can be ordered directly from Fotoimpex in Germany

Disadvantages:

• Only 4 sheets (instead of 6 for most alternatives)
• Cannot be used for other formats

Who is it for? Photographers without a darkroom who are looking for maximum convenience. Can be ordered from Fotoimpex in Germany.

Manufacturer: Stearman Press, USA — shop.stearmanpress.com

7. JOBO 2509n / Rotary Development

Spiral cost: 70,26 € (Macodirect)

+ Tank: JOBO 2500 series required. Cheapest new tank: JOBO 2550 Multitank 5 — 170,75 € (Macodirect)

Total cost: ~241 € (spiral + tank, without processor!)

Capacity: 6 sheets per 2509n spiral

Darkness: Dark when loading, then daylight

Image: Macodirect

The professional solution. The JOBO 2509n spiral holds 6 sheets of 4x5 and fits into all JOBO tanks of the 2500 series (2520, 2521, 2523, 2550). It can be used with a JOBO rotary processor as well as with manual inversion development — a processor (CPP-2/CPP-3, from 4.190 €) is not absolutely necessary.

Advantages:

• Precise temperature control (with processor)
• Continuous agitation for maximum uniformity
• Multi-format (35mm, 120, sheet film) with professional results
• Can also be used manually (without processor)

Disadvantages:

• High initial costs — tank alone already 170+ €
• Complete system with processor: 4,000+ €
• Space-intensive
• Cheapest tank (2520) only available used

Who is it for? Professionals, frequent developers, and anyone who wants to do C-41 or E-6 at home. If you develop 20+ sheets per week, the investment is worth it.

8. 3D-printed solutions

Cost: 10–50 € (filament/printing service)

Capacity: 4–6 sheets (depending on design)

Darkness: Varies depending on design

The open-source revolution has also reached film development. On platforms like Printables and Thingiverse you can find free designs for Paterson-compatible sheet film inserts.

Image: Evan Dorsky on Printables

Advantages:

• Extremely affordable (especially with your own 3D printer)
• Customizable to your own needs
• Community-driven, constant improvements
• Uses existing Paterson Tanks (PTP115)

Disadvantages:

• Print quality varies greatly
• Long-term durability of PLA/PETG in chemicals not always tested
• Accuracy of fit depends on the type of printer
• Trial and error on first use

For whom? Makers, hobbyists and anyone with access to a 3D printer. Anyone who enjoys optimization.

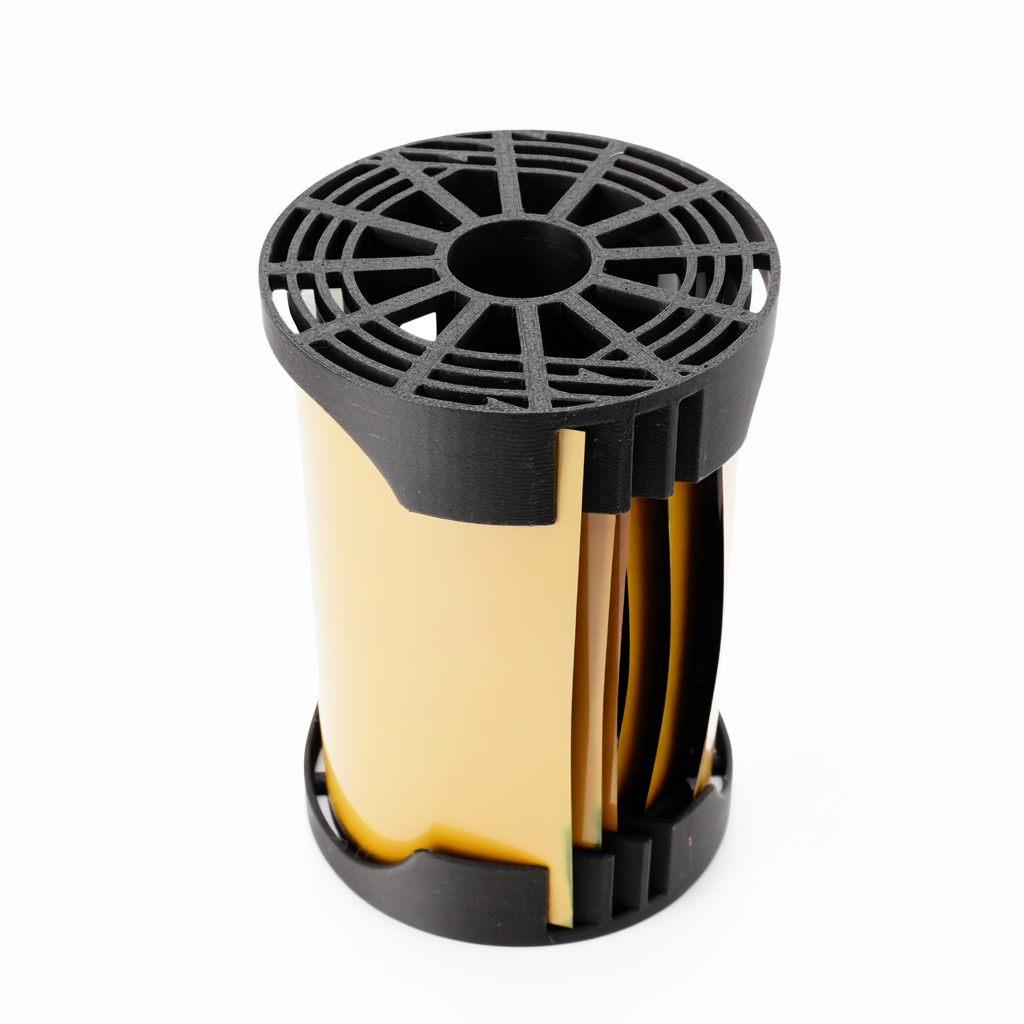

9. Ausgeknipst 4x5 Developing Reel MK2

Cost: 59.95 €

+ Tank: Standard Paterson PTP115 — ~25 € (the smaller, cheaper tank!)

Total cost: ~85 € — the cheapest new complete system

Capacity: 6 sheets 4x5

Darkness: Dark when loading, then daylight (integrated light trap)

Our own solution — and yes, we are biased, which is why it is deliberately not in first place. The reel is based on the open-source design by Evan Dorsky on Printablesthat we have further developed.

What makes the MK2 version different?

The main difference to the original design is an integrated light trap. If you put the simple open-source design in a Paterson Tank, the standard funnel no longer fits — so you would have to carry out the entire development process in the dark. Our MK2 version has its own light lock that solves the problem:

1. Load film into the reel in the dark
2. Attach light lock
3. Attach standard Paterson funnel
4. Turn on the light — everything from now on in daylight

An honest note: Loading initially requires a delicate touch. Practice a few times in daylight with an old film before you venture into real shots.

After development, the reel can be split into two halves so that you can remove the negatives without resistance — no pulling or pushing on the wet, sensitive emulsion.

Advantages:

• Cheapest NEW system for 4x5 tank development (~85 € complete)
• Works with the Standard Paterson PTP115 (not the more expensive PTP116!)
• Integrated light trap (MK2 Upgrade)
• 6 sheet capacity
• Disassemblable for scratch-free removal, open source base
• Can be bought new immediately

Disadvantages:

• Loading in the dark requires practice
• Smaller community than MOD54

Need a suitable Paterson Tank? → Paterson Tanks at Ausgeknipst

In addition to the 4x5 version, we also have reels for 9x12 and other niche formats.

→ View 4x5 Developing Reel MK2 in the shop

Comparison table

Method	Price System	Price Tank	Price Total	Capacity	Daylight?	Availability
Tray development	0–20 €	—	0–20 €	flexible	completely dark	New
Taco method	5–10 €	available	5–10 €	~4 sheets	when loading	Always
HP Combi Plan T	45–90 €	incl.	45–90 €	6 sheets	after loading	Used only
3D printing (Evan Dorsky)	10–50 €	PTP115 ~25 €	35–75 €	4–6 sheets	Varies	Printing service
Ausgeknipst MK2	59.95 €	PTP115 ~25 €	~85 €	6 sheets	Light lock	New
MOD54	~60 €	PTP116 ~30 €	~90 €	6 sheets	after loading	New
Stearman SP-445	100 €	incl.	~100 €	4 sheets	completely	New
JOBO 2509n	70 €	JOBO 2550 ~171 €	~241 €	6 sheets	Partly	New

Chemistry and practical tips

No matter which method you choose — a few basic rules always apply:

Amount of chemistry: For inserts for Paterson Tanks, you need approx. in the PTP115 (Ausgeknipst MK2) approx. 500 ml chemistry, in the PTP116 (MOD54) approx. 1000 ml.

Agitation: Agitate the tank normally, but not too aggressively. When using insert systems, excessive movement can cause films to come loose from their guides.

Temperature: Especially with C-41 (color), precise temperature control is crucial. For B&W negative film, a deviation of ±0.5°C is usually not critical.

Changing bag: If you don't have a darkroom, a changing bag is essential for loading (applies to all methods except SP-445).

Note on the LAB-BOX: The LAB-BOX from ars-imago is sometimes mentioned as a 4x5 solution, but only supports 35mm and 120 Rollfilm. A 4x5 module does not exist and has not been announced.

Conclusion: Which method suits you?

There is no "best" method — only the right one for your situation:

• No budget? → Tray development. Costs nothing, but works.
• Already have a Paterson tank? → Ausgeknipst MK2 (fits in the standard PTP115!) or MOD54 (needs the larger PTP116).
• Buying everything new and as cheap as possible? → Ausgeknipst MK2 + PTP115 for ~85 € — the cheapest new complete system.
• No darkroom, no changing bag? → Stearman Press SP-445 (can be ordered from Fotoimpex in DE).
• Professional standards and budget available? → JOBO 2509n + 2500 tank.
• Maker with a 3D printer? → Print Evan Dorsky's design yourself.

The most important thing: Get started. No method is perfect, and you will develop your own workflow. Most large format photographers have tried several methods over time and then settled on one.

If you have any questions — write to us via the contact form or leave a comment under the video.

Good light! Your Vladi from Ausgeknipst.
